Product Details

What’s In The Box
Tech Specs
SKU: N8100K01-10CB

Dimensions

Squares: 231*231*29mm

Small Squares: 115.5*115.5*29mm

Textured Squares: 231*231*29mm

Light Pegboard: 231*231*29mm

Pegboard Hook: 79.5*76.6*5.5mm

Shelves: 229.6 x 70 x 129mm

Shelf Cover: φ5.5*79.7*76.6mm

Cable Length: 2m

Controller: 230*35*29mm

Weight

Squares (Per Panel): 550g

Small Squares (Per Panel): 135g

Textured Squares (Per Panel): 492g

Light Pegboard (Per Panel): 900g

Pegboard Hook: 26g

Shelf: 227.5g

Shelf Cover: 26g

PSU: 205g

Controller: 40g

Shelf Load Bearing Capacity: 1.5kg

Light Pegboard Load Bearing Capacity: 3kg

Features

Screen Mirror: Yes

Rhythm Music Visualizer: Yes

Sync+: Yes

Connect+: Yes, panels can be connected with other Nanoleaf Blocks & Nanoleaf Shapes

Touch Control: No

General

Luminous Per Display:
Squares: 320 lumens
Small Squares: 70 lumens
Textured Squares: 230 lumens
Light Pegboard: 62 lumens
Communication Protocol: WiFi (2.4 GHz b/g/n)
NOTE: 5 GHz networks are not compatible with Nanoleaf products.

Dimmability: Yes (via Nanoleaf App, Voice, Controller)

Mounting Type:
Squares: Double-sided mounting tape (included)
Small Squares: Double-sided mounting tape (included)
Textured Squares: Double-sided mounting tape (included)
Light Pegboard: Must be screw mounted (screws provided)
Shelves: Must be screw mounted (screws provided)

The Nanoleaf App: Control via Nanoleaf App (Android & iOS) for mobile/tablet or The Nanoleaf Desktop App (Windows & Mac).

Thread Compatibility: Can act as a Thread Border Router with a future firmware update

Compatibility: Apple Home, Amazon Alexa, Google Home, SmartThings, Razer Chroma

Colour

Colour Temperature: 1200K-6500K

Colour Channel Configuration: RGBW

Max Colours: More than 16 million

Colour Rendering Index (CRI): 80

Power

Voltage: 100 - 240V AC

Max Panels per Power Supply (42W):
Squares: 17
Light Pegboard: 17
Textured Squares: 17
Small Squares: 60

Max Panels per Controller: 500

Individual Power Consumption Values: Bigger layouts may require additional Power Supply Units. Use the following values to calculate the maximum number of panels per PSU:
Squares: 3W
Light Pegboard: 3W
Textured Squares: 3W
Small Squares: 0.8W

Use environment

Lifetime: 25,000 hrs

Operating temperature range: 0℃ to 40℃

Usage Scenario: Indoor

IP Rating: IP20

Warranty

Warranty: 2 Years

User Manual
Certifications
icon icon icon icon icon icon icon icon icon icon icon icon icon icon
Load video:
Load video:
Load video:

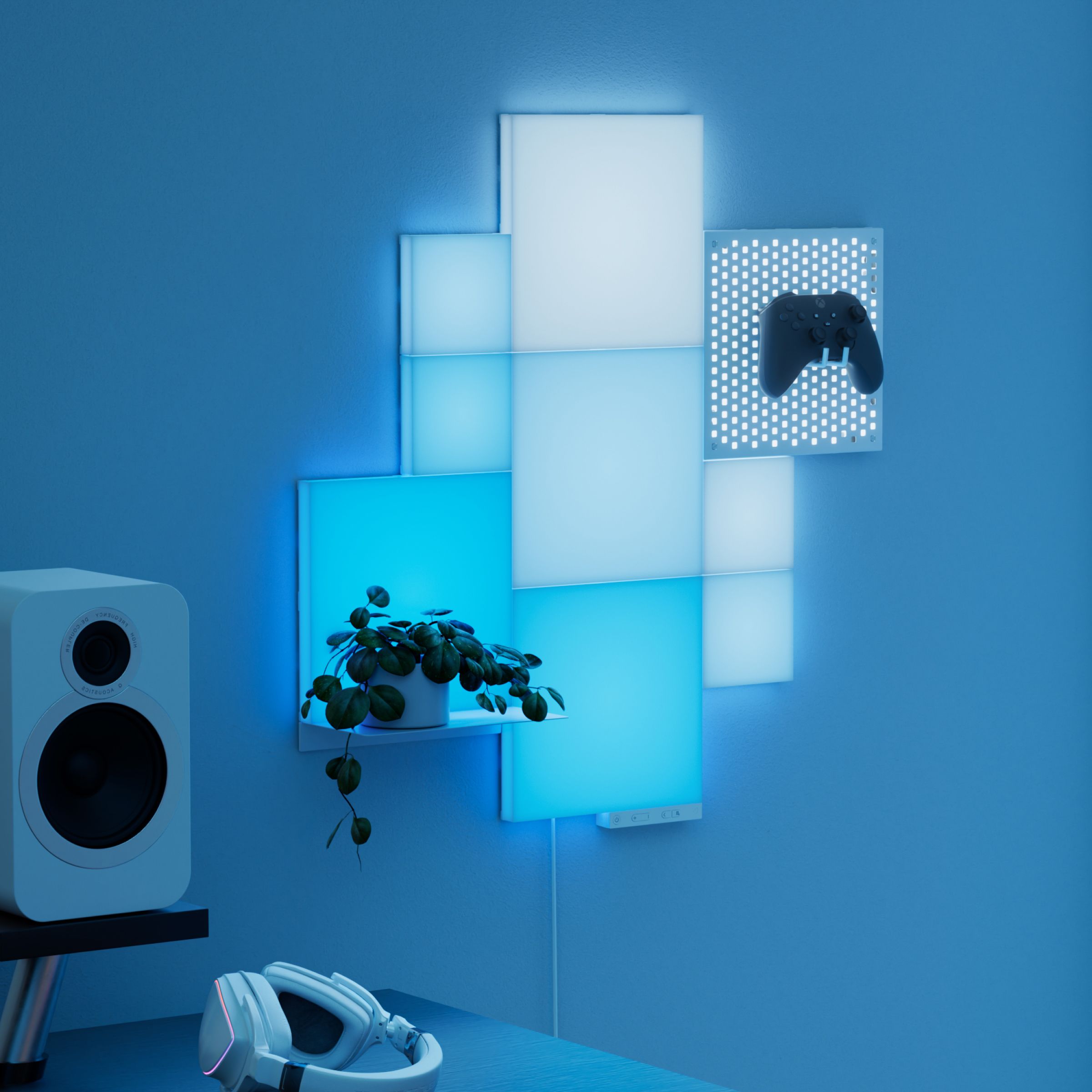

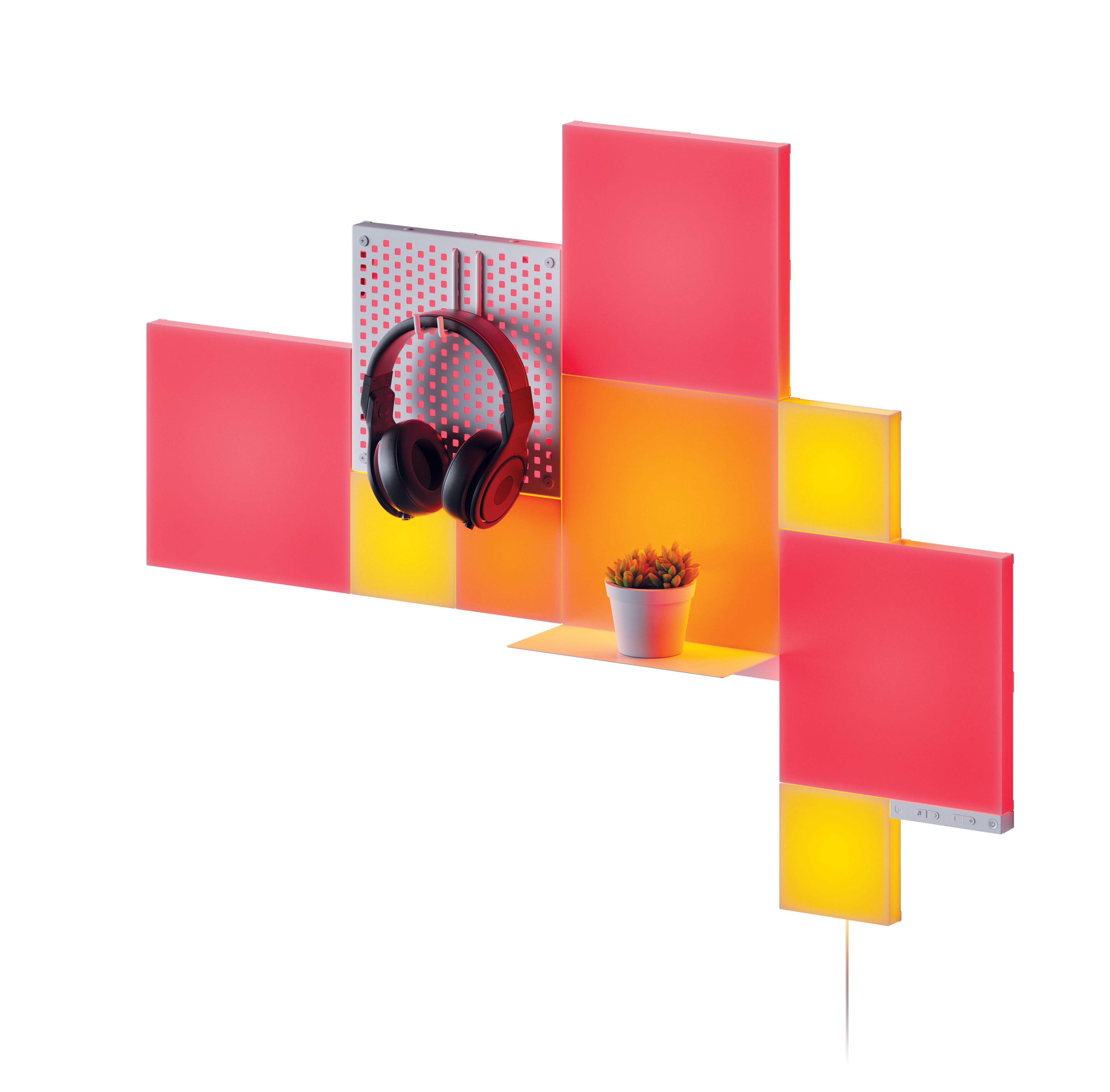

Build Your Lighting Display, Your Way.

With modular light panels, pegboards, and shelves that can be mixed and matched, you have total design freedom to create a statement lighting piece that doubles as a versatile display and storage solution.

Meet the Nanoleaf Blocks Family

Squares
Squares

Extra-large light panels with diffused edge to edge illumination.

Small Squares
Small Squares

Small but mighty light panels that provide greater design flexibility when expanding your layouts.

Light Pegboard
Light Pegboard

Lighting meets function with this multi-purpose display and storage solution that comes with 2 sturdy pegboard hooks.           Pegboard holes are backlit for an ultra- futuristic look.

This product must be screw-mounted.

Textured Squares
Textured Squares

Light panels that feature a 3D multi-faceted design that adds extra depth and visual interest to your lighting display.

Shelves
Shelves

Ultra thin stainless steel shelves install between or around panels to showcase your favorite items and collectibles.

Comes with mount covers for a sleek and clean look.

This product must be screw-mounted.

Next-Level Statement Lighting

The Ultimate Showstopper

Mix and match from 5 Blocks styles for a lighting layout that's totally unique to you.

Take customization one step further by creating your own colour palettes and animated Scenes.

<h3>The Ultimate Showstopper</h3>

Design Your Own Pixel-Art Inspired Displays

Sleek square panels with even edge-to-edge lighting give you complete creative flexibility to go ultra minimalistic or take it to the max.

<h3>Design Your Own Pixel-Art Inspired Displays</h3>

Display & Storage Functionality

Maximise desk space and stay clear of clutter with space-saving Shelves and Light Pegboards—all while still letting your items shine!

Organise and display your favourite gadgets, keyboards, controllers and more.

<h3>Display & Storage Functionality</h3>

Plus Your Go-To Nanoleaf Features

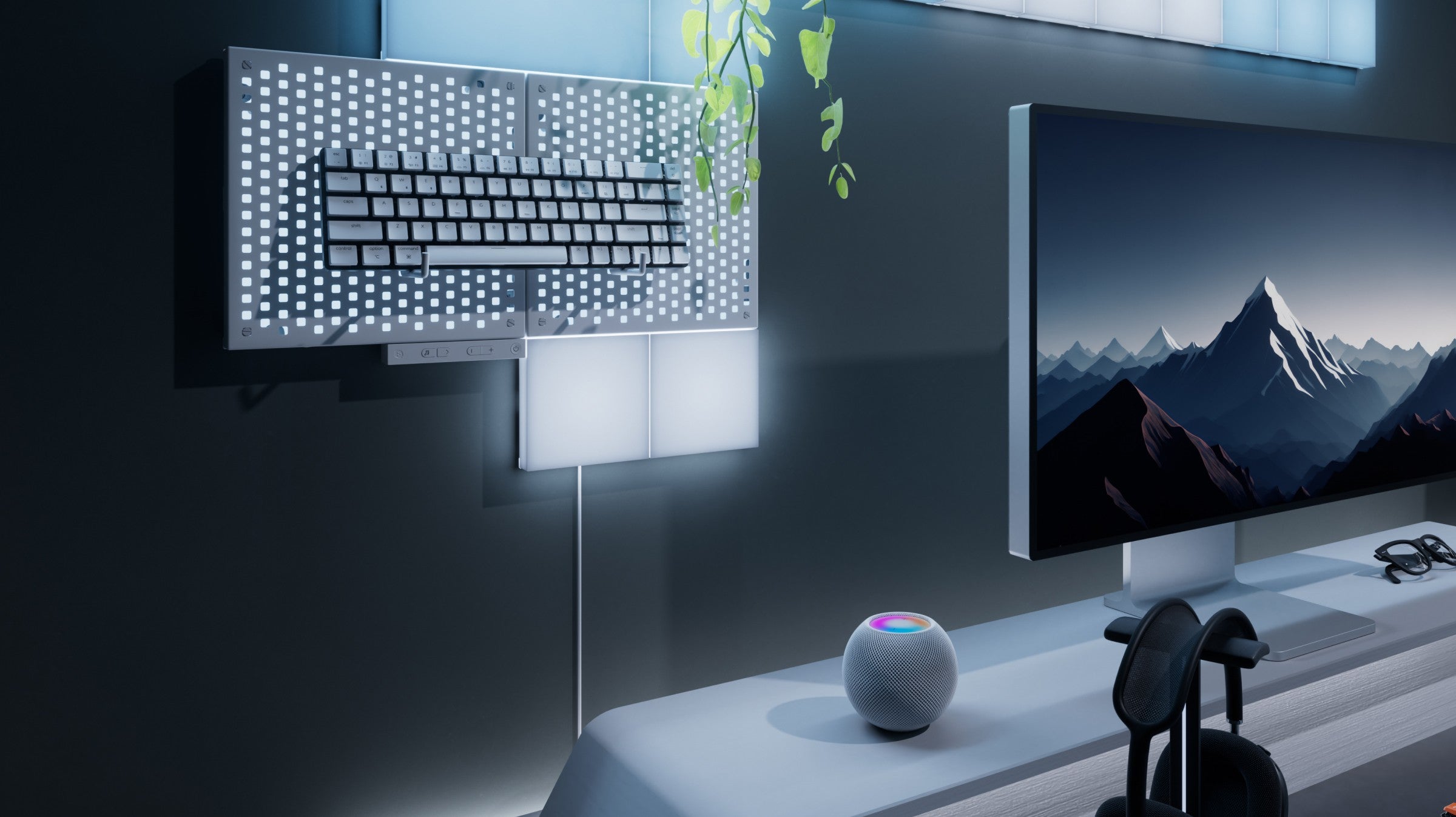

Easy Smart Control

Control via Wi-Fi using Nanoleaf Mobile & Desktop App, Smart Home Ecosystems & Voice Control, or Physical Controller.

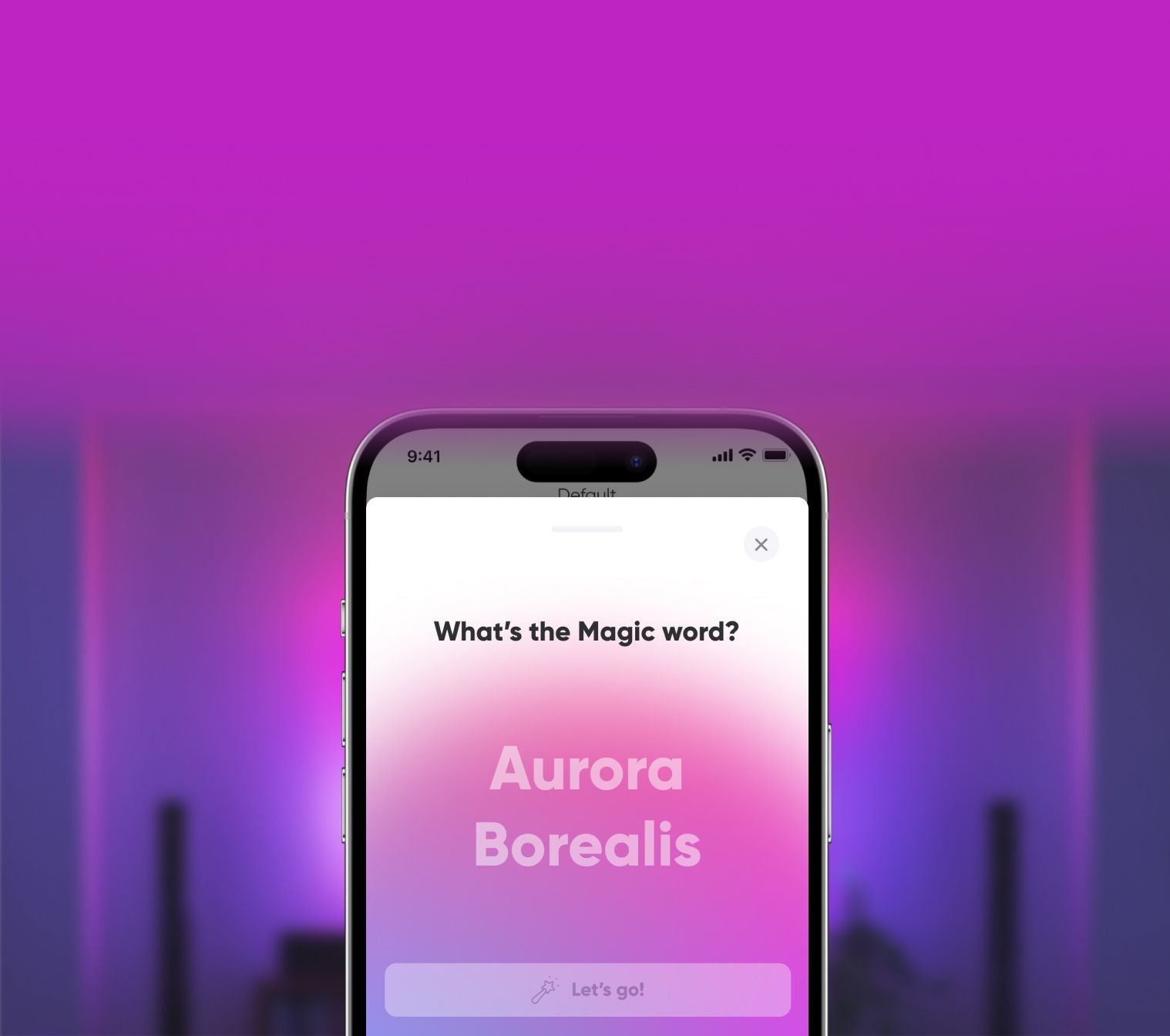

AI Magic Scenes

Automatically generate colour palettes based on a word or phrase using AI.

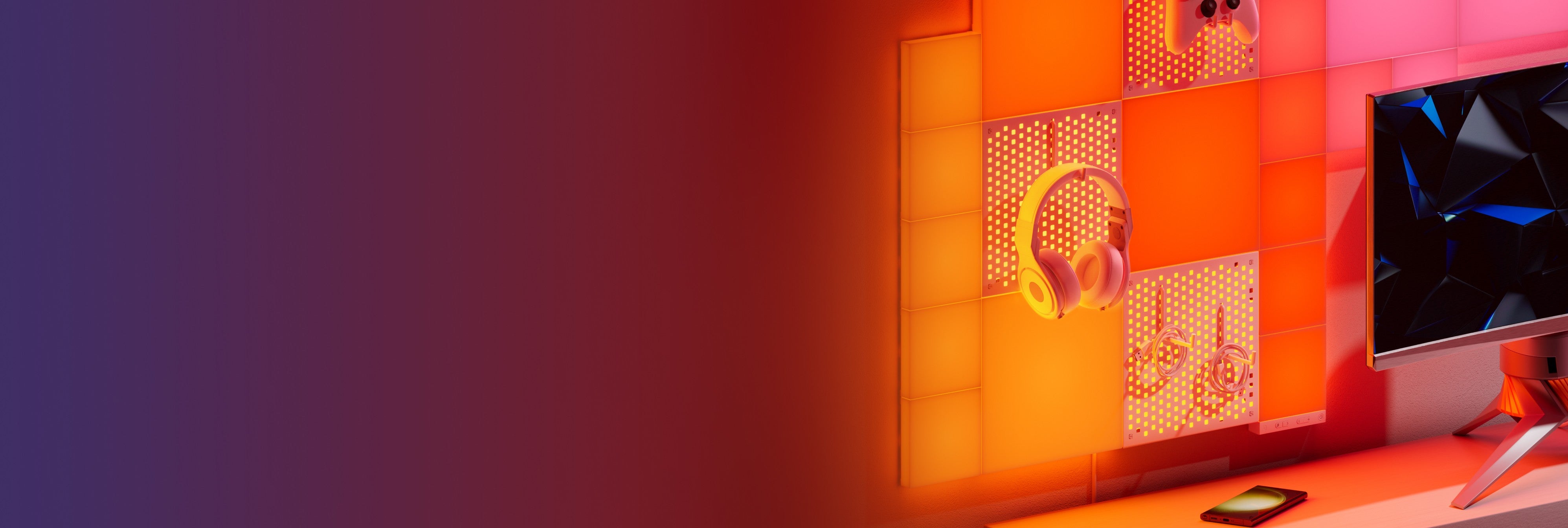

Customise Colours & Motions

Create your own palettes and animated colour-changing Scenes with 16M+ colours, or browse thousands of community creations.

Use our Paint Tool within the Scene Creator to choose exactly where each colour goes on your layout!

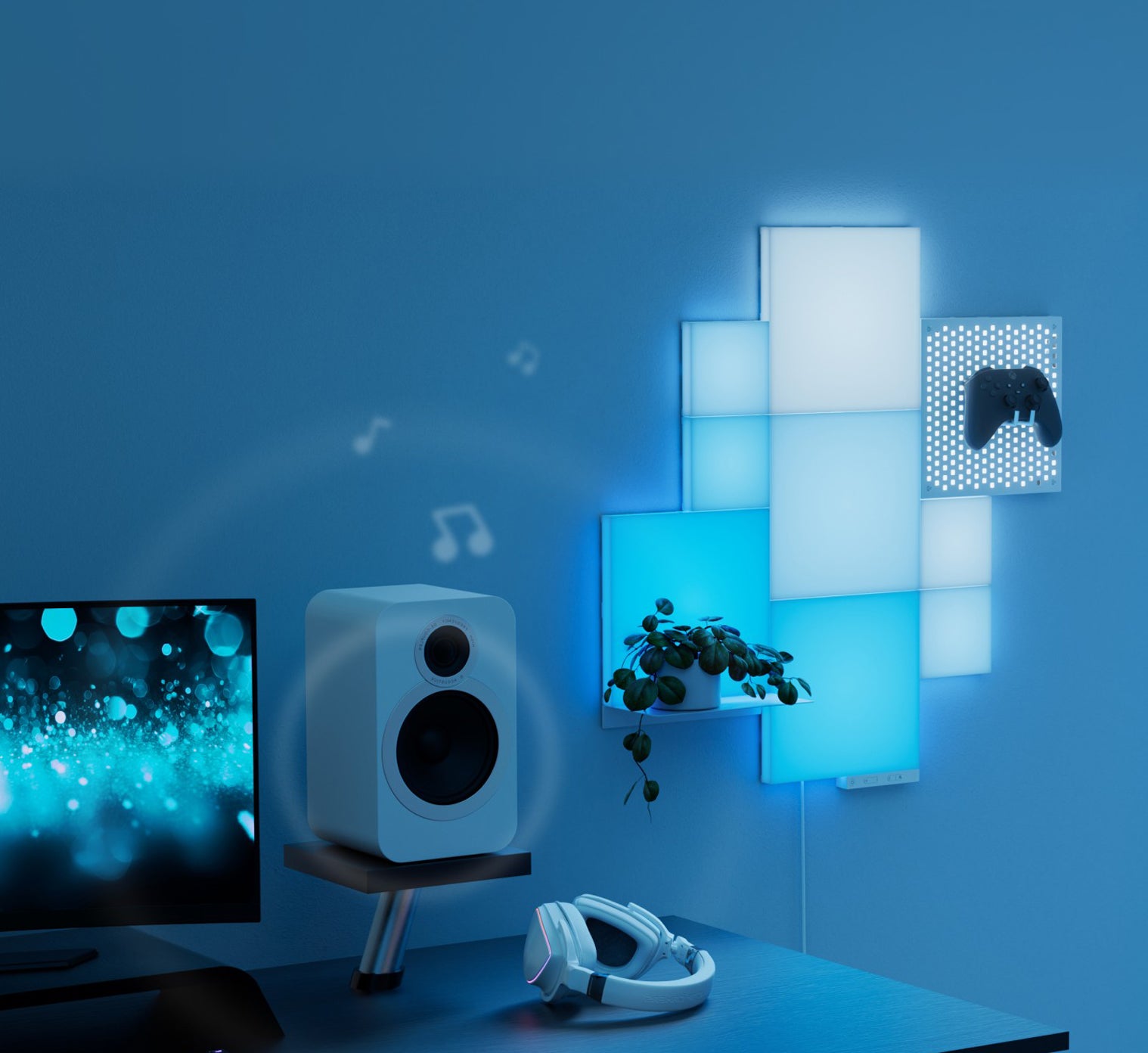

Reacts to Music

Watch your lights dance to music with built-in sound reactivity—or enable Orchestrator in the Desktop App for enhanced synchronisation across your lights.

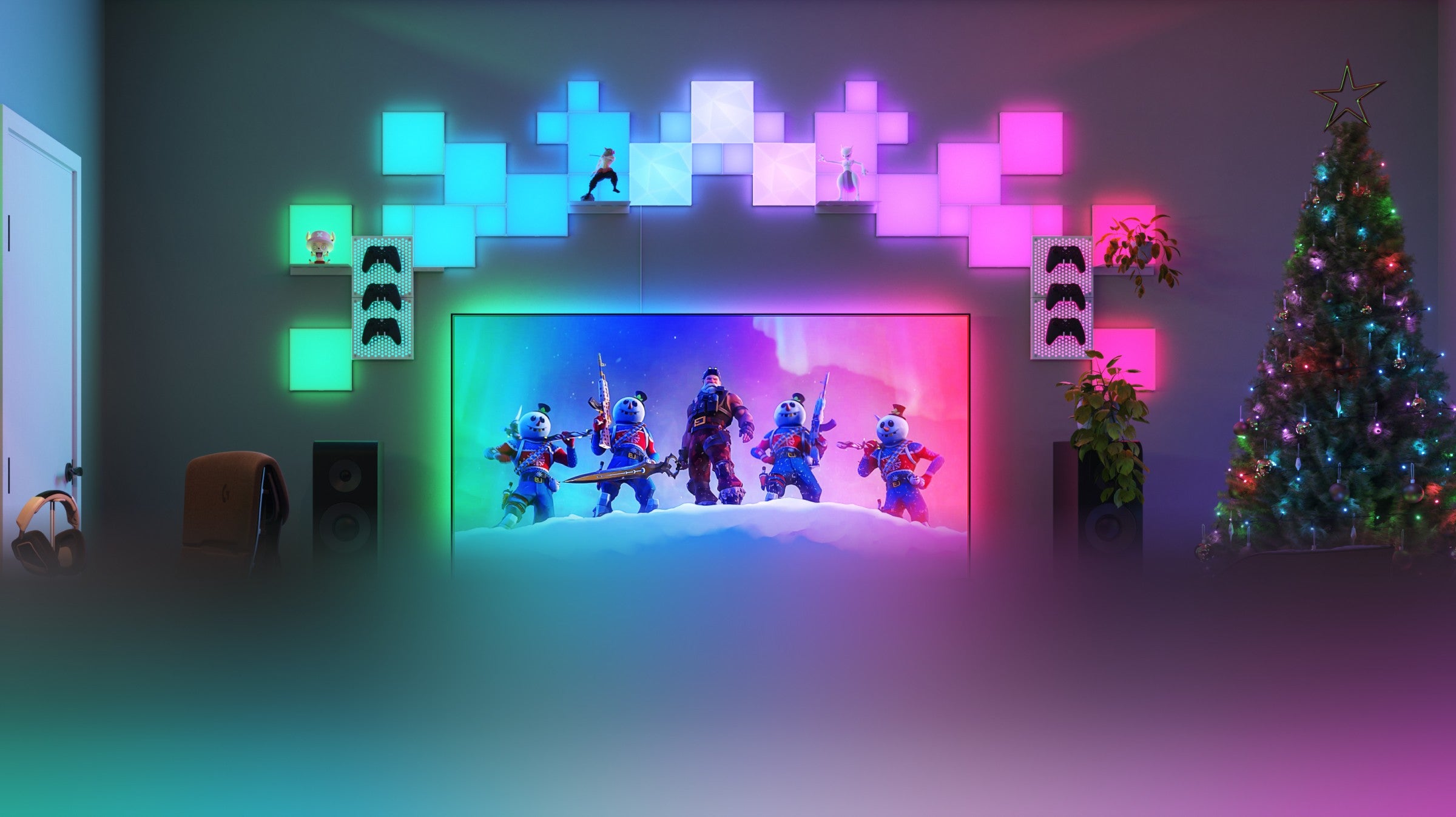

Screen Mirror

Sync your lights in real-time with the colours from your favourite movies and video games. Available through the Nanoleaf Desktop App or through Sync+ with Nanoleaf 4D.

Please read our FAQs page to find out more.

FAQs

Can I connect Nanoleaf Blocks with Nanoleaf Shapes?

Yes, they can be physically connected together because they share the same type of rigid linkers.

Note: Nanoleaf Blocks & Shapes do not share the same type of flex linkers. You can only connect them together using rigid linkers.

Are Nanoleaf Blocks touch reactive?

Nanoleaf Blocks are not touch reactive.

How are Nanoleaf Blocks mounted to the wall?

You can mount Nanoleaf Blocks Squares, Small Squares & Textured Squares with the included double sided mounting tape on any smooth and flat surface. Nanoleaf Blocks Light Pegboards & Shelves must be screw-mounted using the included screws.

Note: Tape is NOT suitable for ceiling installations or textured, porous, or popcorn surfaces (ie. wallpaper or brick walls). Because Nanoleaf Blocks are also heavier and thicker, we do not suggest mounting them onto the ceiling with adhesive tape.

Why are the panels so thick compared to Shapes?

The vision for Nanoleaf Blocks is to give users a different way to customise the wall. For accessories such as Shelves and Pegboard we needed to ensure better structural stability. Nanoleaf Blocks is designed with that structural mindset.

How much weight can the Pegboard/Shelves hold?

1.5kg for Shelves and 3kg for Pegboard

Can I use the Shapes PSU/Flex Linker with Blocks?

No, the connection port on the panels for these accessories differ slightly. You can not reuse your Nanoleaf Shapes Power Supply Unit or Flex Linker with Nanoleaf Blocks.

Didn’t find your answer?

Don't hestitate to contact us

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jusu

Amazing product. Love the effects

R
Rich Hall-Black
Great product but service could go a long way

I recently got my Nanoleaf blocks and despite one of the worst customer service experiences of my life the product itself is very impressive. It’s a shame there product design team didn’t handle the customer service journey.

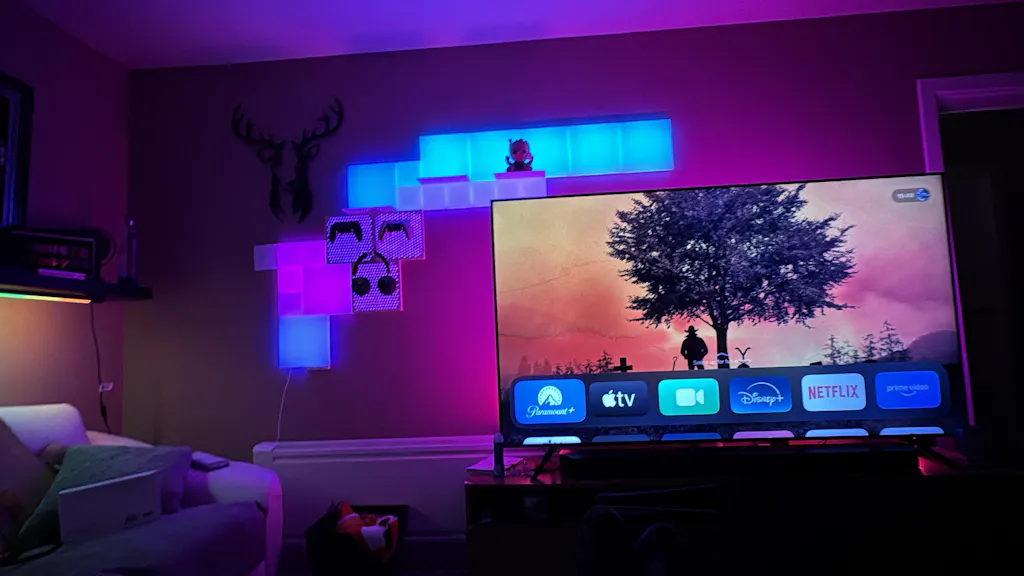

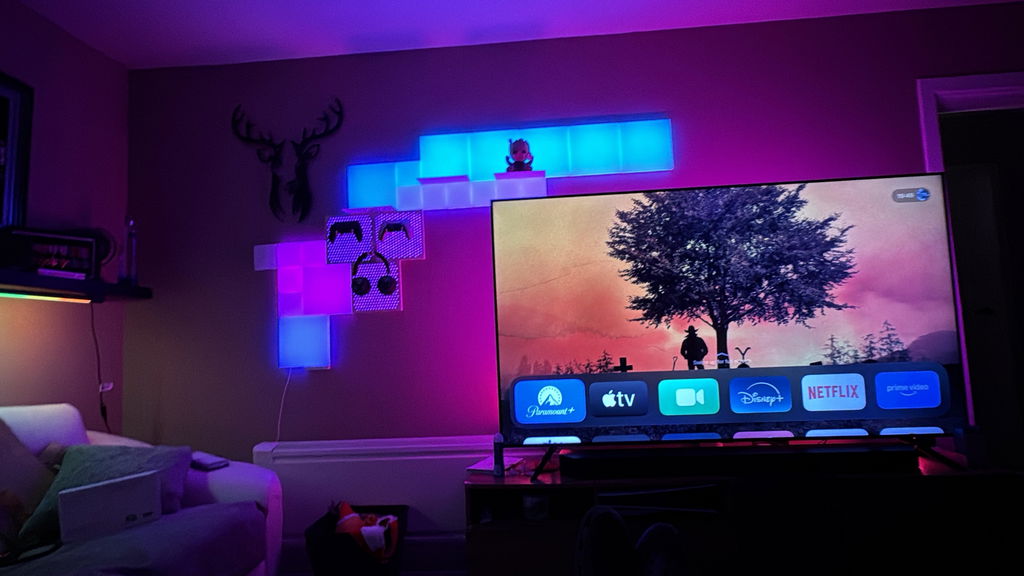

Anyway, the block is a very cool and effective way to add a feature to any room. I recently just had this fitted in my livingroom on my tv wall to compliment my 75 inch tv and a whole host of other smart lights. I got the holiday string lights for my daughters first Christmas last year and was very impressed which lead me to buy the blocks. The are pretty straightforward to deal with and install and you can literally change the combo up as you go while connected to power and shuffle and connect and disconnect as you like. Pro tip, lay them out of the floor, use the layout tool for help but connect them up to power and use the linkers. I started with my basic shape, then when it half resembled what I was looking for done a test with some colour and a bit more shuffling and boom it looks great. I did however get 2 faulty linkers but Nanoleaf got them replaced right away. So if your light goes white but dosent sync the colors from the rest of your model check with a different linker first as it’s more likely that than the panel. The colours, scenes, AI mode there’s a lot of fun features to play about with including music sync which I love. My biggest fave is the linking the scenes you favourite to Apple home which is a massive win and something introduced since Christmas. It’s also very versatile and for once you can watch the install video and it’s just as easy as the video when you get hands on. Overall I absolutely love this product and so do many of my customers who we set up for there own smart home install. The mounting tape they provide is one of the best mounting tapes I have came across and I actually buy extra of them from the replacement parts section as it’s a toolbox staple of mines as so many other tapes are useless. So you won’t be disappointed with the product, but the service, that’s a story for another day. Based entirely on the product and not the service I give this 5 stars.
